xnattagger Documentation

xnattagger is a python command line tool that labels or “tags” scans within an XNAT instance according to user specifications.

Possible Tagging Convention Overview

“Tagging” refers to adding notes to your scans’ notes field in XNAT. The example below shows the tags that could be added to the notes field for each of the different modalities using xnattagger along with some example series names for each modality.

Type	Example series	Tag Being Inserted Into Note Field
DWI	`UKbioDiff_ABCDseq_ABCDdvs`	`#DWI_MAIN_001, #DWI_MAIN_002, ..., #DWI_MAIN_N`
DWI_PA_FMAP	`UKbioDiff_ABCDseq_DistMap_PA`	`#DWI_PA_001, #DWI_PA_002, ..., #DWI_PA_N`
DWI_AP_FMAP	`UKbioDiff_ABCDseq_DistMap_AP`	`#DWI_AP_001, #DWI_AP_002, ..., #DWI_AP_N`
DWI_REVPOL	`CMRR_DiffPA_2mm_4b0`	`#DWI_REVPOL_001`, `#DWI_REVPOL_002`, `#DWI_REVPOL_N`
BOLD	`ABCD_fMRI_rest_noPMU`	`#BOLD_001, #BOLD_002, ..., #BOLD_N`
BOLD_PA	`ABCD_fMRI_DistortionMap_PA`	`#BOLD_PA_001, #BOLD_PA_002, ..., #BOLD_PA_N`
BOLD_AP	`ABCD_fMRI_DistortionMap_AP`	`#BOLD_AP_001, #BOLD_AP_002, ..., #BOLD_AP_N`
T1w	`ABCD_T1w_MPR_vNav`	`#T1w_001, #T1w_001, ..., #T1w_N`
T1w_MOVE	`ABCD_T1w_MPR_vNav_setter`	`#T1w_MOVE_001, #T1w_MOVE_002, ..., #T1w_MOVE_N`
T2w	`ABCD_T2w_SPC_vNav`	`#T2w_001, #T2w_002, ..., #T2w_N`
T2w_MOVE	`ABCD_T2w_SPC_vNav_setter`	`#T2w_MOVE_001, #T2w_MOVE_002, ..., #T2w_MOVE_N`

The image below displays an MR Session report page with populated notes.

Note

If a DWI scan has corresponding PA and AP scans, they should be assigned matching numbers. For example, #DWI_MAIN_001 would correspond to #DWI_PA_001 and #DWI_AP_001. Some diffusion studies will not have dedicated fieldmaps and will use reverse polarity (“revpol”) acquisitions instead. Since these “revpol” scans can be applied to several “main” diffusion scans, it is recommended that they be grouped in an an identifiable way. For example, adding a letter to the tag. See this explanation for further details. The config file below also can serve as an example.

Installation

Install xnattagger via pip:

pip install xnattagger

Verify that it installed sucessfully:

pip show xnattagger

Configuring xnattagger

tagger.yaml file

In order for xnattagger to work properly, it has to know what it’s looking for as it parses information about the scans. Particularly, it needs to know the series name and image type that correspond to the different scans and modalities. That’s where the tagger.yaml config file comes in. Take a look at the example below (download). Notice that each modality has a series description, image type and tag associated with it.

Note

Each modality/scan type can have several series_description and image_type fields that it tries to match to. In the example below, all three of the diffusion scan types have two sets of series_description and image_type fields. This means that xnattagger will tag diffusion scans that match either of those descriptions/scan types. If you have different series descriptions across projects/sites, you can catch and tag them all this way. The tag field is completely customizable. Whatever you put there will be inserted into the notes field on XNAT.

t1w:
    - series_description: ABCD_T1w_MPR_vNav
      image_type: [ORIGINAL, PRIMARY, M, ND, NORM]
      tag: '#T1w'
t1w_move:
    - series_description: ABCD_T1w_MPR_vNav_setter
      image_type: [ORIGINAL, PRIMARY, M, ND, MOSAIC]
      tag: '#T1w_MOVE'
t2w:
    - series_description: ABCD_T2w_SPC_vNav
      image_type: [ORIGINAL, PRIMARY, M, ND, NORM]
      tag: '#T2w'
t2w_move:
    - series_description: ABCD_T2w_SPC_vNav_setter
      image_type: [ORIGINAL, PRIMARY, M, ND, MOSAIC]
      tag: '#T2w_MOVE'
dwi:
    - series_description: CMRR_DiffAP_2mm_20dir_Set1
      image_type: [ORIGINAL, PRIMARY, DIFFUSION, NONE, MB, ND, MOSAIC]
      tag: '#DWI_MAIN_A_001'
    - series_description: CMRR_DiffAP_2mm_20dir_Set2
      image_type: [ORIGINAL, PRIMARY, DIFFUSION, NONE, MB, ND, MOSAIC]
      tag: '#DWI_MAIN_A_002'
    - series_description: CMRR_DiffAP_2mm_20dir_Set3
      image_type: [ORIGINAL, PRIMARY, DIFFUSION, NONE, MB, ND, MOSAIC]
      tag: '#DWI_MAIN_B_001'
    - series_description: CMRR_DiffAP_2mm_20dir_Set4
      image_type: [ORIGINAL, PRIMARY, DIFFUSION, NONE, MB, ND, MOSAIC]
      tag: '#DWI_MAIN_B_002'
    - series_description: Axial MB DTI PA (MSV21)
      image_type: [ORIGINAL, PRIMARY, DIFFUSION, NONE, ND, NORM, MOSAIC]
      tag: '#DWI_MAIN_C_001'
revpol:
    - series_description: CMRR_DiffPA_2mm_4b0
      image_type: [ORIGINAL, PRIMARY, M, MB, ND]
      note: 'DIFF_2.0_4B0_Set12'
      tag: '#DWI_REVPOL_A_001'
    - series_description: CMRR_DiffPA_2mm_4b0
      image_type: [ORIGINAL, PRIMARY, M, MB, ND]
      note: DIFF_2.0_4B0_Set34
      tag: '#DWI_REVPOL_B_001'
    - series_description: Axial MB DTI AP (MSV21)
      image_type: [ORIGINAL, PRIMARY, DIFFUSION, NONE, ND, NORM, MOSAIC]
      tag: '#DWI_REVPOL_C_001'
dwi_PA:
    - series_description: ABCD_dMRI_DistortionMap_PA
      image_type: [ORIGINAL, PRIMARY, DIFFUSION, NONE, ND]
      tag: '#DWI_FMAP_PA'
    - series_description: UKbioDiff_ABCDseq_DistMap_PA
      image_type: [ORIGINAL, PRIMARY, DIFFUSION, NONE, ND]
      tag: '#DWI_FMAP_PA'
dwi_AP:
    - series_description: ABCD_dMRI_DistortionMap_AP
      image_type: [ORIGINAL, PRIMARY, DIFFUSION, NONE, ND]
      tag: '#DWI_FMAP_AP'
    - series_description: UKbioDiff_ABCDseq_DistMap_AP
      image_type: [ORIGINAL, PRIMARY, DIFFUSION, NONE, ND]
      tag: '#DWI_FMAP_AP'
bold:
    - series_description: ABCD_fMRI_rest_noPMU
      image_type: [ORIGINAL, PRIMARY, M, ND, MOSAIC]
      tag: '#BOLD'
bold_PA:
    - series_description: ABCD_fMRI_DistortionMap_PA
      image_type: [ORIGINAL, PRIMARY, M, ND]
      tag: '#BOLD_FMAP_PA'
bold_AP:
    - series_description: ABCD_fMRI_DistortionMap_AP
      image_type: [ORIGINAL, PRIMARY, M, ND]
      tag: '#BOLD_FMAP_AP'

XNAT Scan Type

You can find the series description and image type information in your XNAT instance.

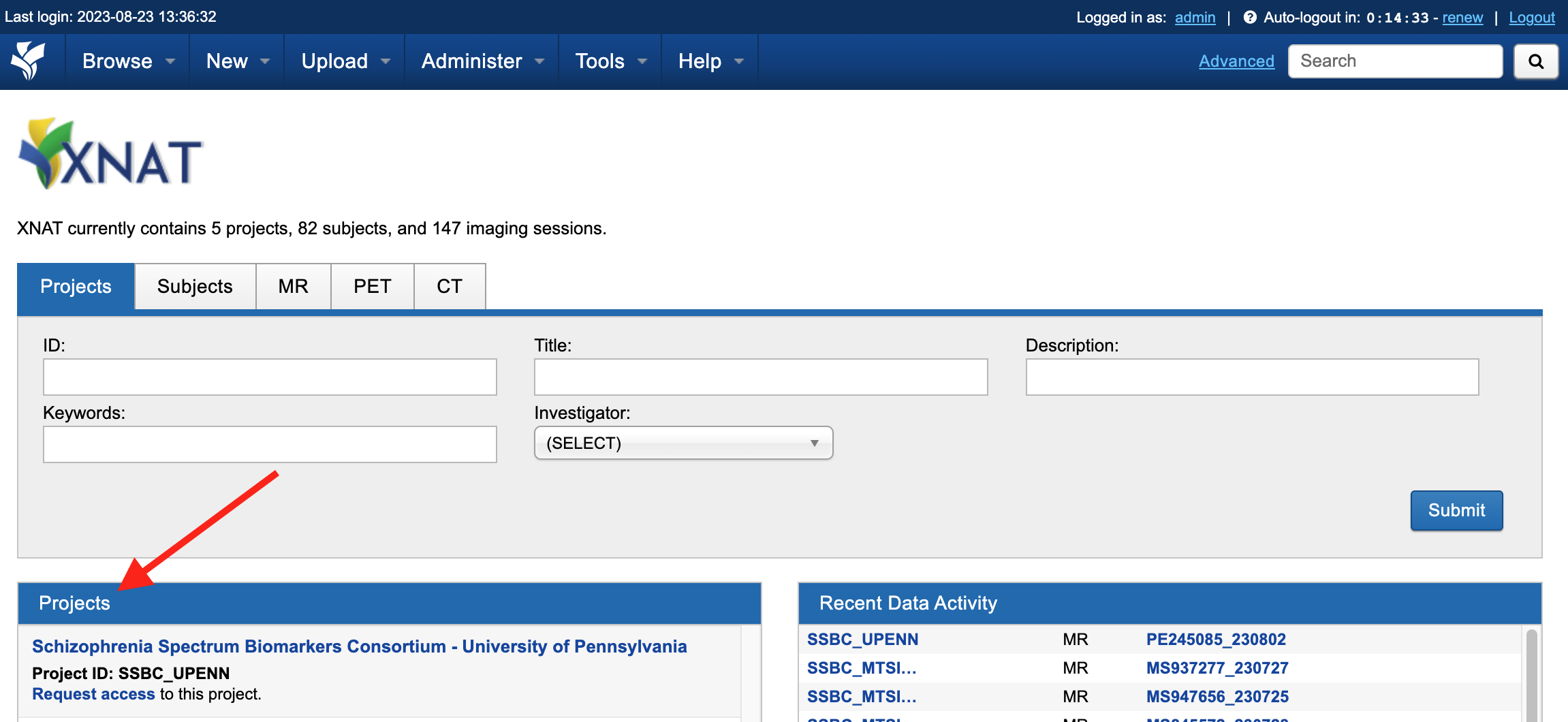

1. Start by clicking on a project on your XNAT instance homepage.

2. Click on Scan Type Cleanup on the right side of the page.

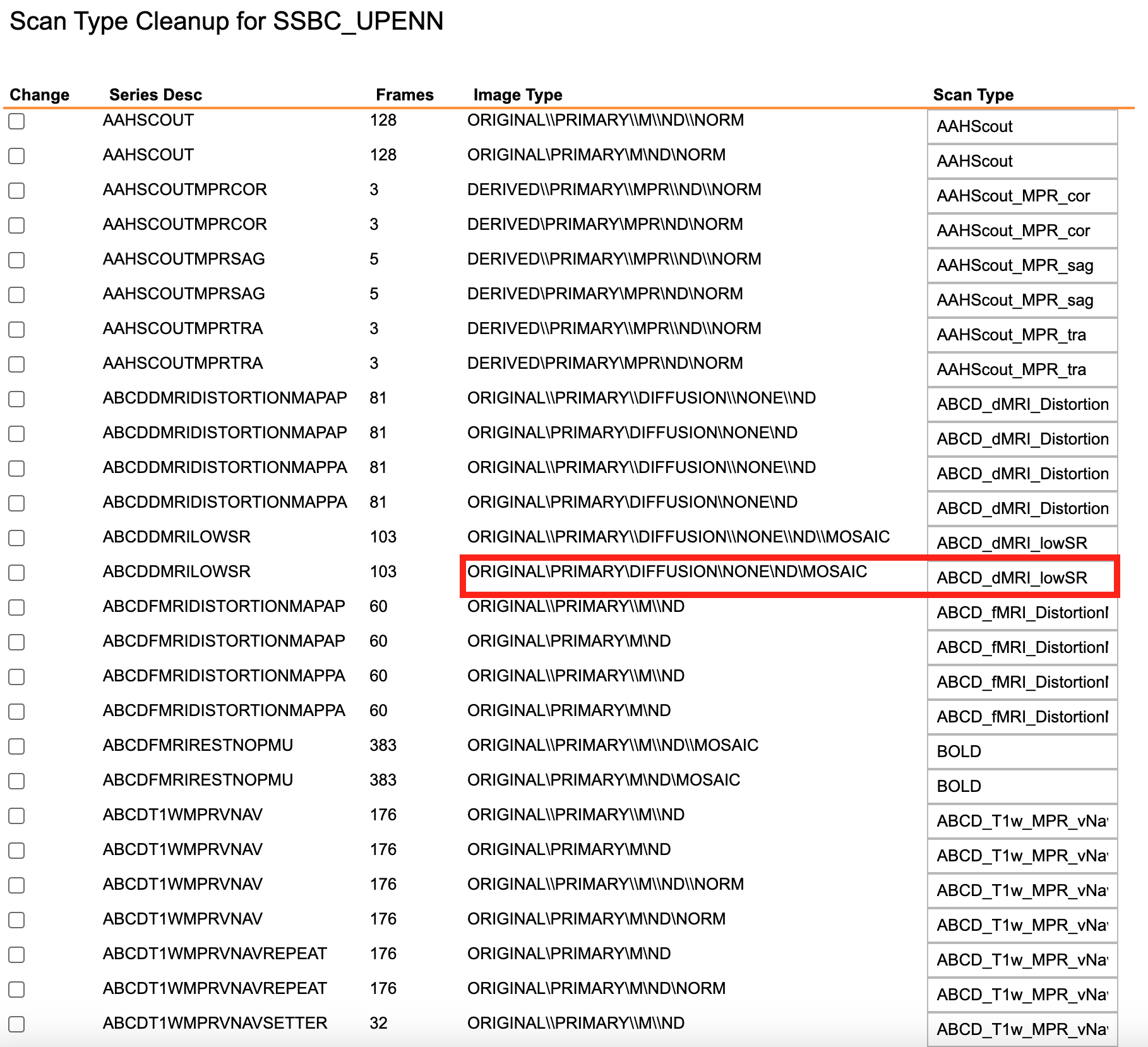

3. You will see a page that lists all of the series descriptions and image types that exist within the project. You will need to pull the information from here to populate your tagger.yaml file.

Let’s look at the diffusion acquisition as an example. Notice that the series_description in the tagger.yaml file above matches the Scan Type column in XNAT and the image_type in tagger.yaml matches the Image Type in XNAT. Be sure to follow the same tokenizing convention when copying the Image Type from XNAT to the image_type in tagger.yaml. The “\” should be replaced with a comma and a space. Here is how we would convert the information form XNAT to yaml format using our diffusion example:

XNAT	tagger.yaml
Scan Type: ABCD_dMRI_lowSR	series_description: ABCD_dMRI_lowSR
Image Type: ORIGINAL\PRIMARY\DIFFUSION\NONE\ND\MOSAIC	image_type: [ORIGINAL, PRIMARY, DIFFUSION, NONE, ND, MOSAIC]

Follow the same convention for all your modalities and you will be good to go!

Running xnattagger

Required Arguments

xnattagger requires three arguments: 1) —label 2) —target-modality 3) —xnat-alias 4) —config

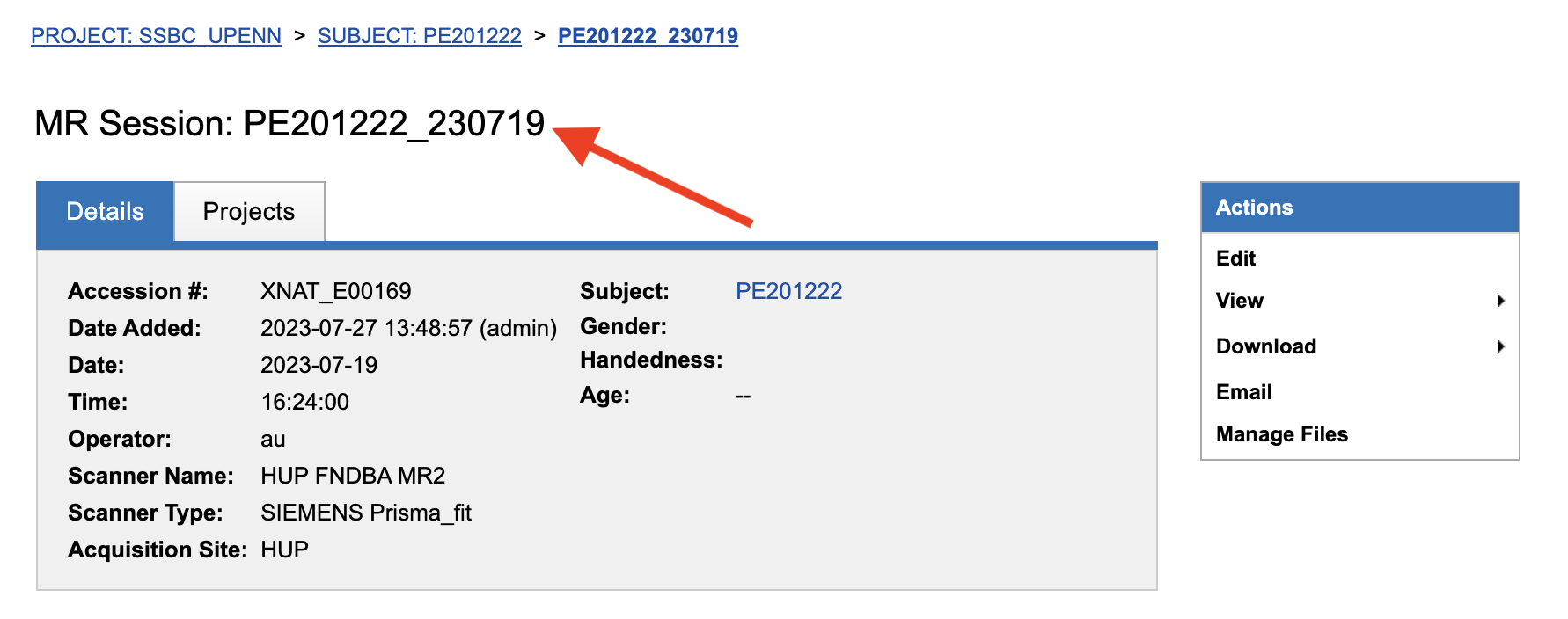

1. --label refers to the XNAT MR Session ID, which is found under XNAT PROJECT —> SUBJECT —> MR_SESSION

2. --target-modality refers to which modalities you want to tag. This argument may be one of the following: dwi, t1, t2, bold, all

--target-modality {dwi, t1, t2, bold, all}

3. --xnat-alias is the alias containing credentials associated with your XNAT instance. It can be created in a few steps with yaxil.

4. --config is the absolute path to the tagger.yaml file you created, or downloaded, above.

Executing the Command

Command Template:

xnat_tagger.py --label <MR_SESSION> target-modality <MODALITY> --xnat-alias <ALIAS> --config <PATH_TO_CONFIG_FILE>

Command Example:

xnat_tagger.py --label PE201222_230719 --target-modality all --xnat-alias ssbc --config /home/nrg/tagger.yaml

Expected Output

Your terminal output should look something like this:

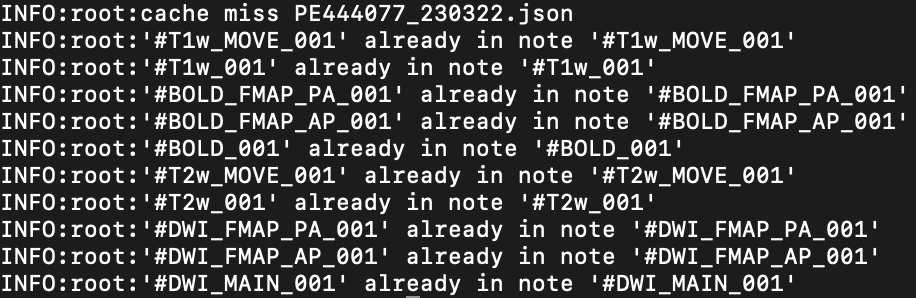

If your tag already exists in the notes field on XNAT, you’ll get a terminal message that looks something like this:

Common Errors

Many errors tend to stem from mis-formatting the tagger.yaml file. Learn about yaml here. Follow the example given above closely!

Advanced Usage

If you would like to see what tags will be uploaded to XNAT without actually doing it, pass the --dry-run argument. You will also have to specify an output json file: -o test.json. That json file will contain metadata about the tags xnattagger mode would upsert. This can be useful for testing/debugging.

All Arguments

Argument	Description	Required
`--label`	XNAT Session Label	Yes
`--target-modality`	Modality to tag	Yes
`--xnat-alias`	Alias for XNAT Project	Yes
`--config`	Configuration file for tagging scans	Yes
`--project`	Project Name	No
`--confirm`	User confirms each tag	No
`--dry-run`	Generate list of to-be-downloaded scans	No
`-o`	Path to `--dry-run` json output file	No

Scripting for xnattagger

You can tag scans for all the subjects and projects in your XNAT instance through a combination of yaxil, xnattagger and the XNAT REST API. The example below (written in python) assumes that you’ve created an xnat alias (auth in the example) using yaxil and that your instance has three projects named: Michigan, Kansas and UCSD

import yaxil
import subprocess

projects = ["Michigan", "Kansas", "UCSD"]

with yaxil.session(auth) as sess:
        for project in projects:
                for subject in sess.subjects(project=project):
                        for experiment in sess.experiments(subject=subject):
                                tagger = f'xnat_tagger.py --alias example --config /home/nrg/tagging.yaml --target-modality all --label {experiment}'
                                proc1 = subprocess.Popen(tagger, shell=True, stdout=subprocess.PIPE)
                                proc1.communicate()

And that’s it! Contact info@neuroinfo.org with any questions or suggestions.
